For: Puch

20265

Athena piston 38 mm original cylinder #A | Puch

EUR 65.40

Incl. 22% VAT.

Product description

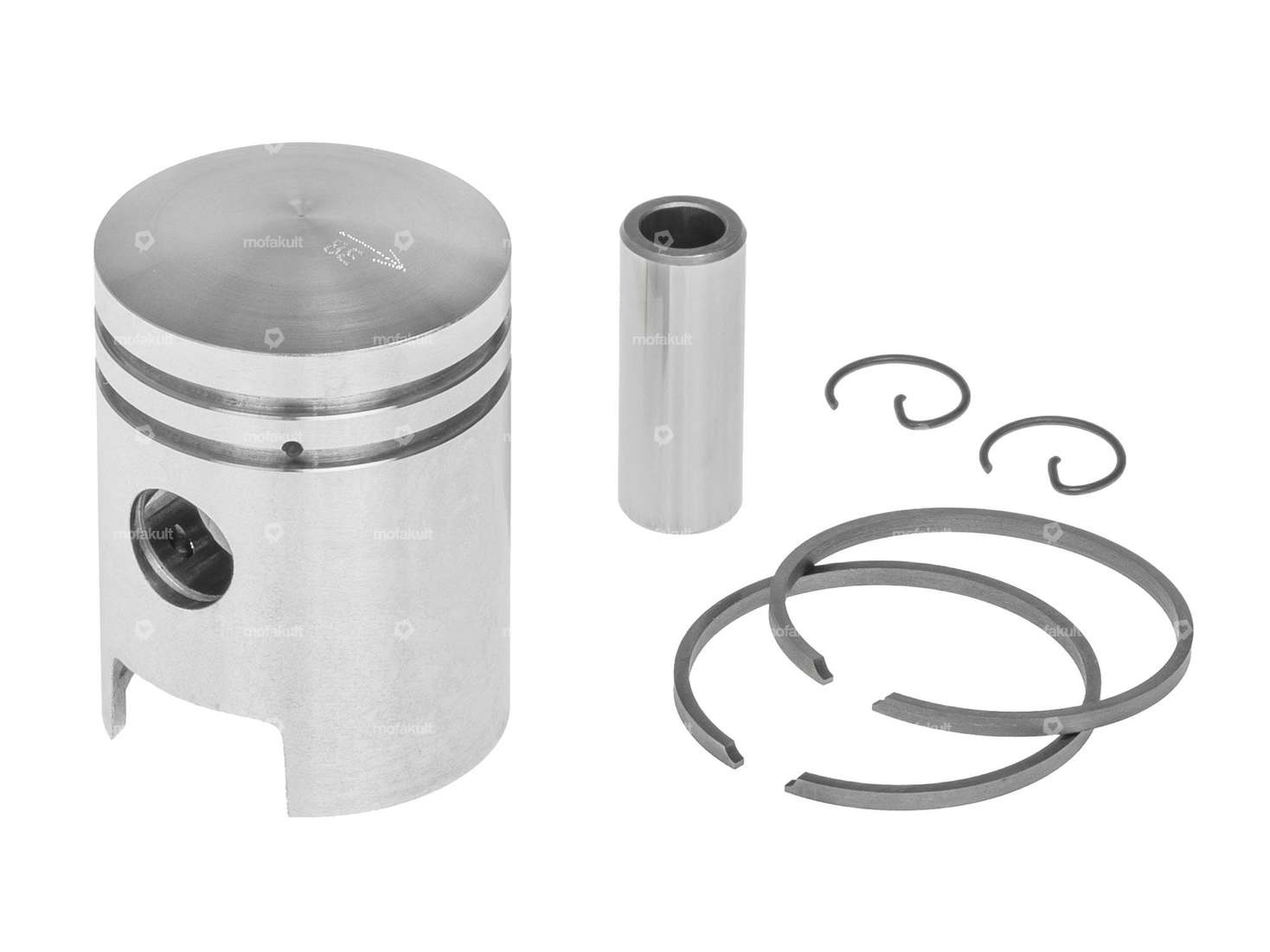

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) to fit the original Athena 38 mm cylinder kit for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the pictures.

Tolerance sizes: A

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Quality product from the Italian manufacturer Athena.

ManufacturerAthena
Nominal diameter38 mm
Ø outside piston (A)37.96 mm
Ø piston pin (B)12 mm
Compression height (C)22.6 mm
Curvature (D)3.56 mm
Total piston height (E)52.66 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Tolerance groupA
Piston weight78 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
